Outline

Dynamic re-calibration of a COVID-19 ABM using Approximate Bayesian Computation

Data assimilation for ABMs using Particle Filters and Kalman Filters

For desert: LLM-backed ABMs

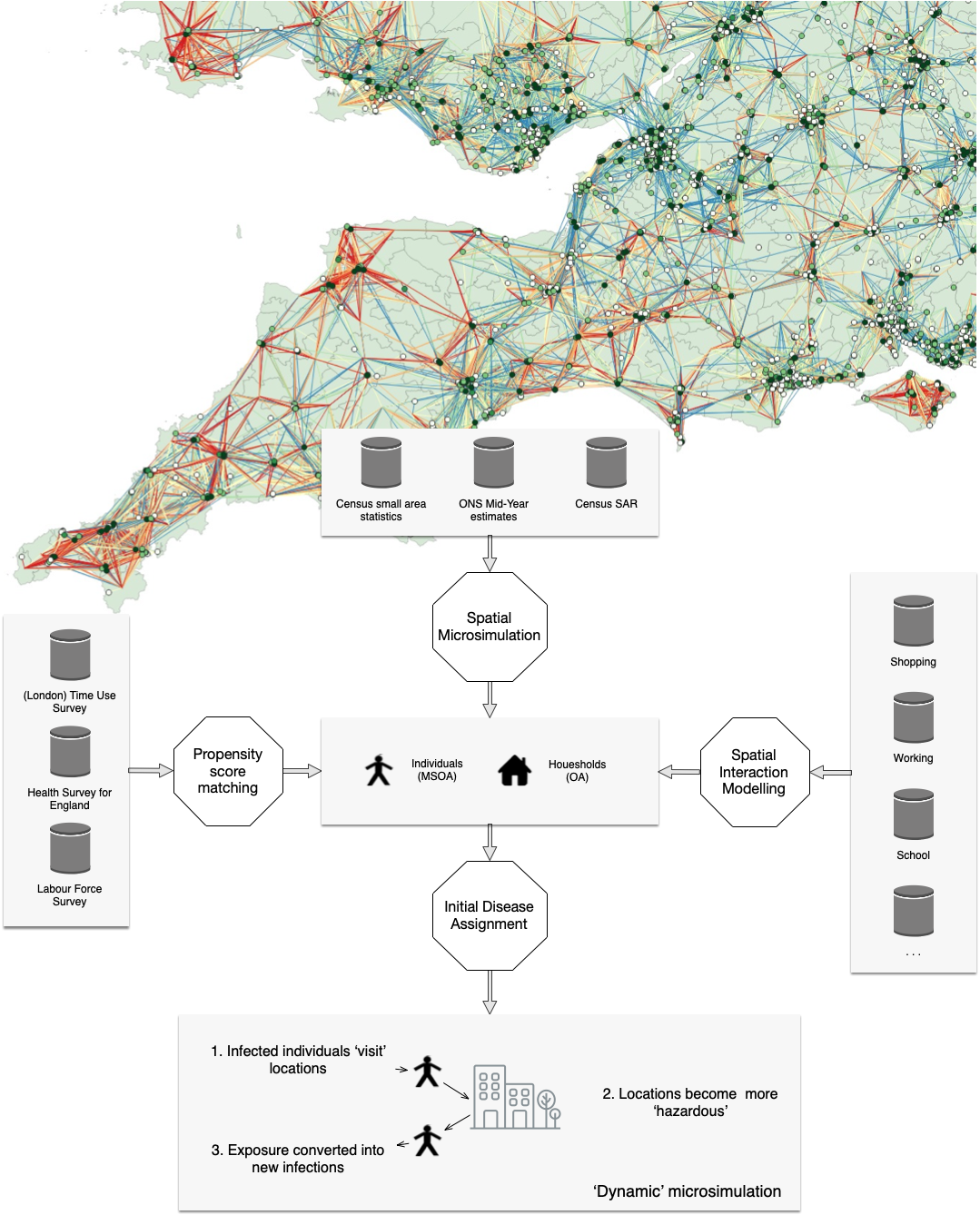

DyME: Dynamic Model for Epidemics

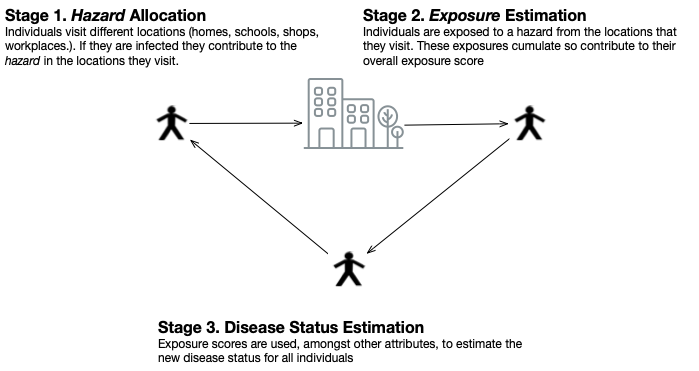

COVID transmission model with components including:

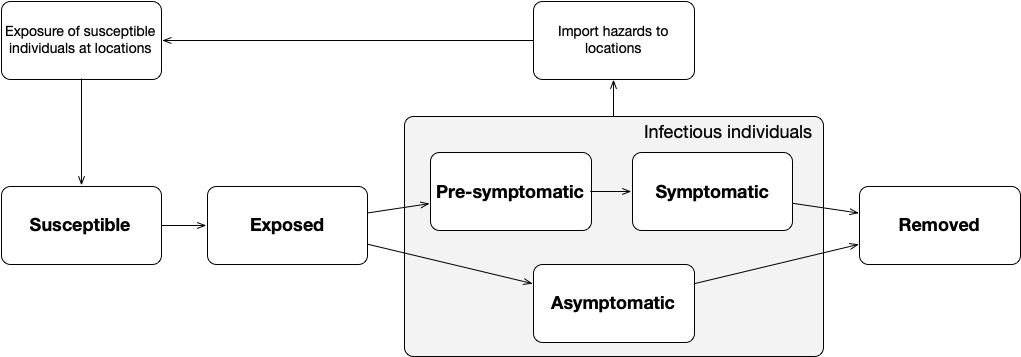

dynamic spatial microsimulation, spatial interaction model, data linkage (PSM), infection model

Represents all individuals in a study area with activities: home, shopping, working, schooling

Daily timestep

DyME Drawbacks:
Data and Latent Variables

Incredible detailed model!

BUT only data available for validation: COVID cases and hospital deaths

Only quantify a tiny part of the transmission dynamics

Manually calibrated most of the parameters

Huge uncertainties

Can we use dynamic calibration to:

Infer latent variables

Make better 'real-time' predictions

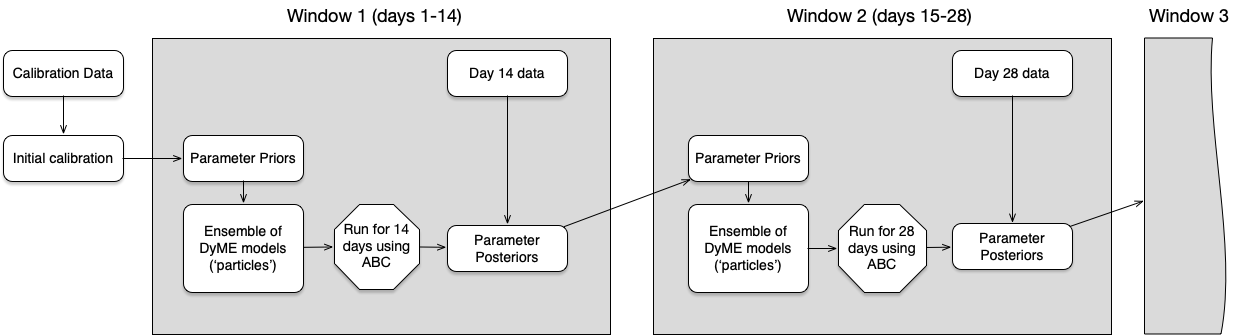

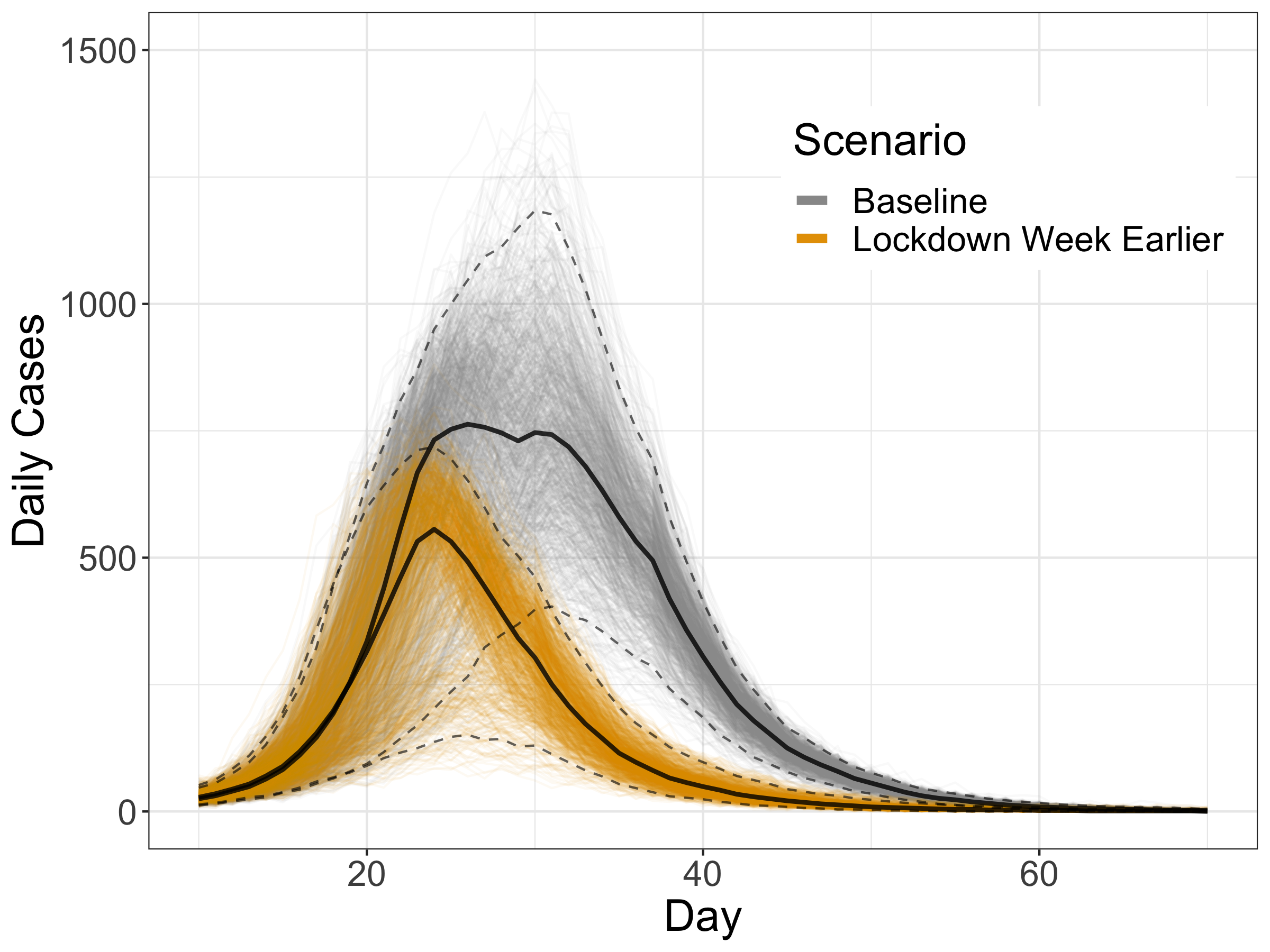

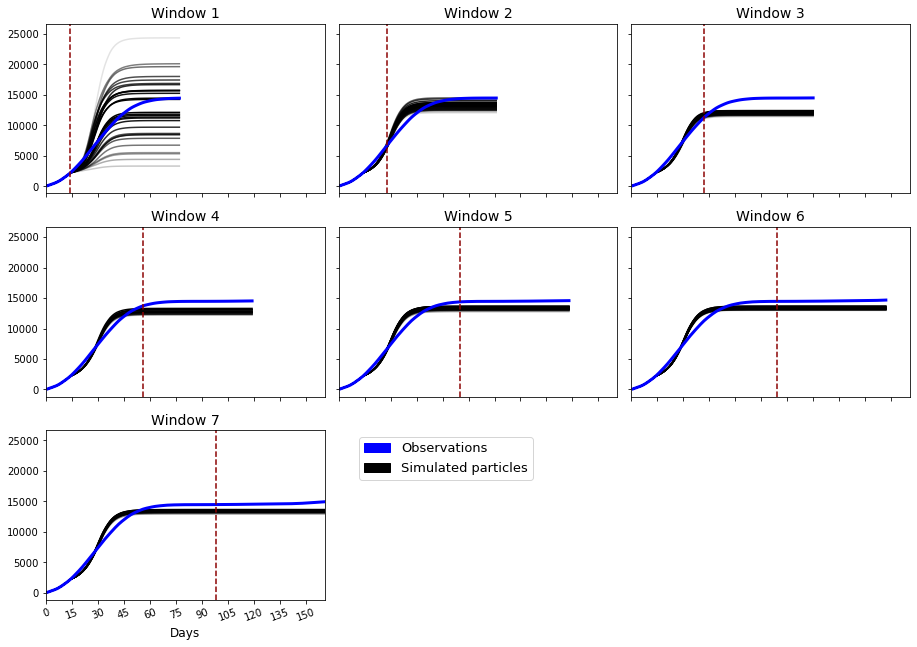

Dynamic Calibration for DyME

Use Approximate Bayesian Computation and Bayesian updating ('dynamic re-calibration')

Reduce uncertainty and produce more accurate future predictions

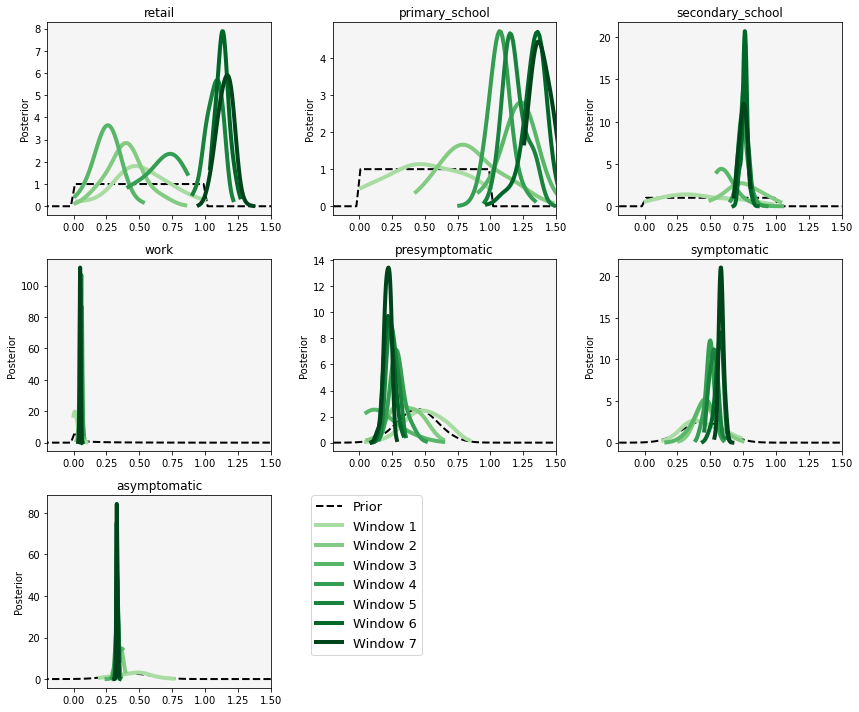

Parameter posteriors might reveal information about the model / system

Aside: Computational Efficiency

Uncertainty quantification, etc., requires many, many model runs

Difficult with computationally-expensive models, like ABMs

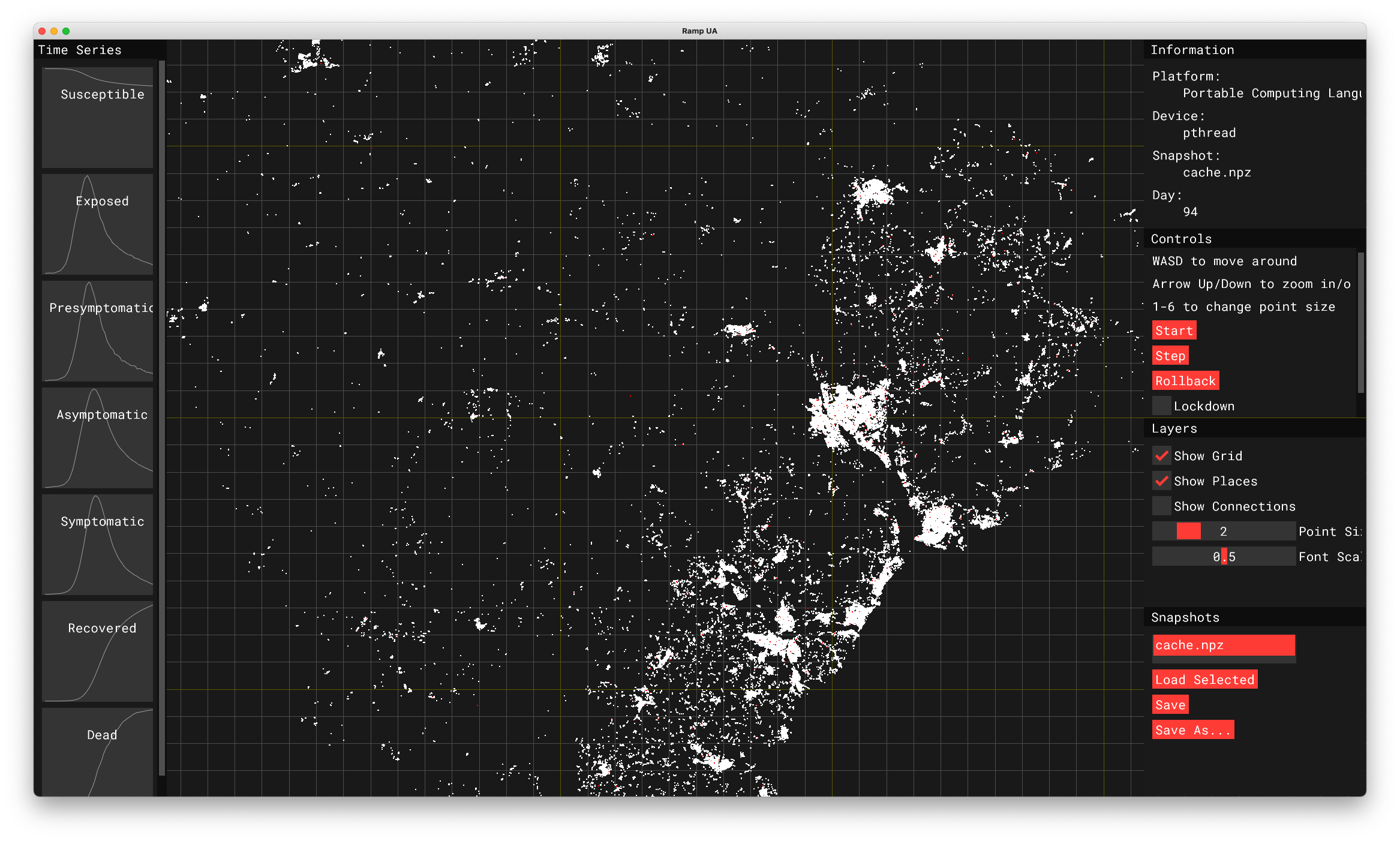

DyME (COVID microsimulation)

A single model run (800,000 individuals, 90 days) took 2 hours

ABC etc. would be impossible at that speed (need 1000s of runs)

Big computers can help

But maybe if I were better at programming ...

Data assimilation v.s. calibration

Challenges for using DA with ABMs

Model size

10,000 agents * 5 variables = 50,000 distinct parameters

Agent behaviour

Agent's have goals, needs, etc., so can't be arbitrarily adjusted

Assumptions and parameter types

Maths typically developed for continuous parameters and assume normal distributions

... but, at least, many of these problems are shared by climate models

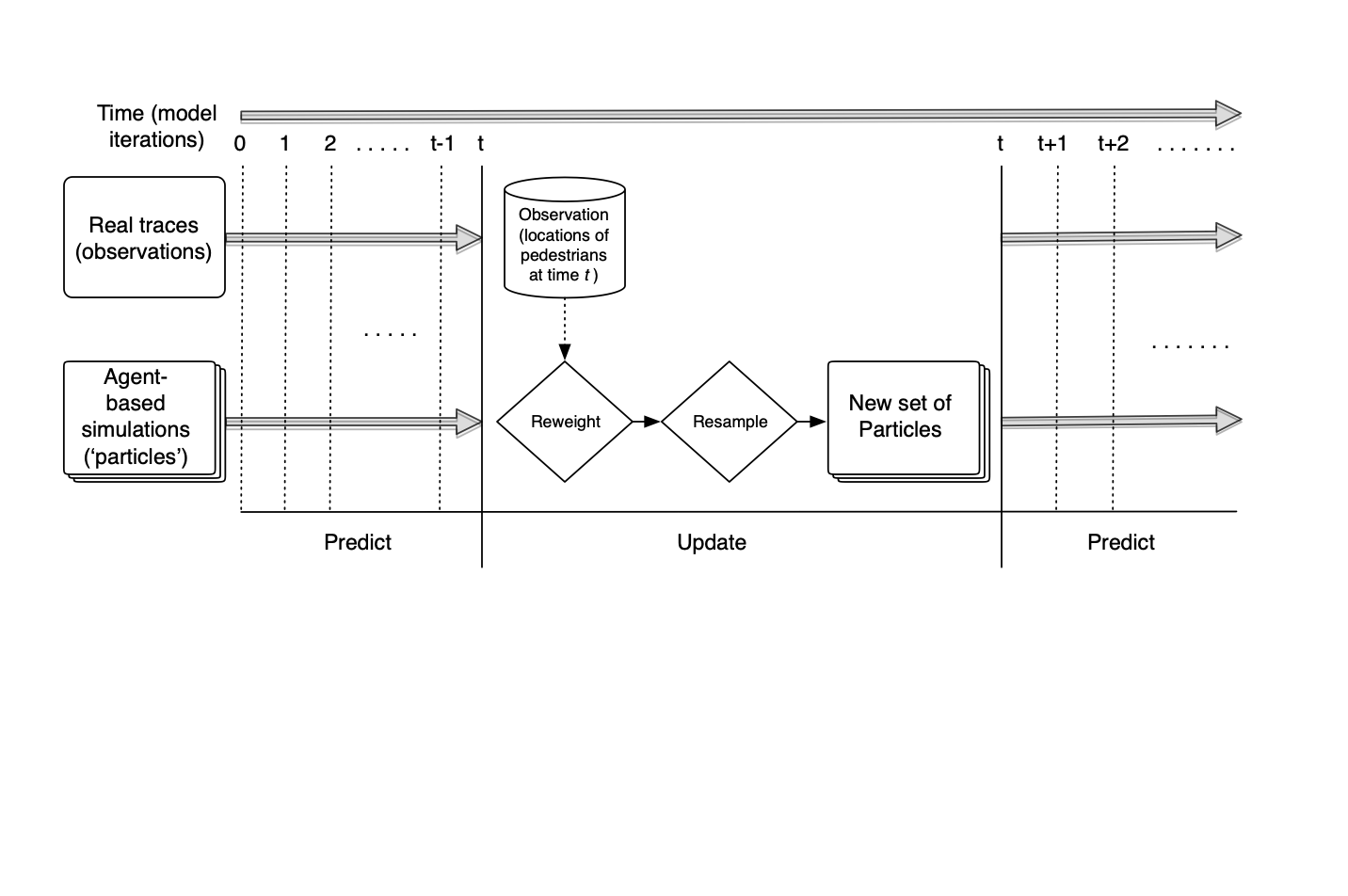

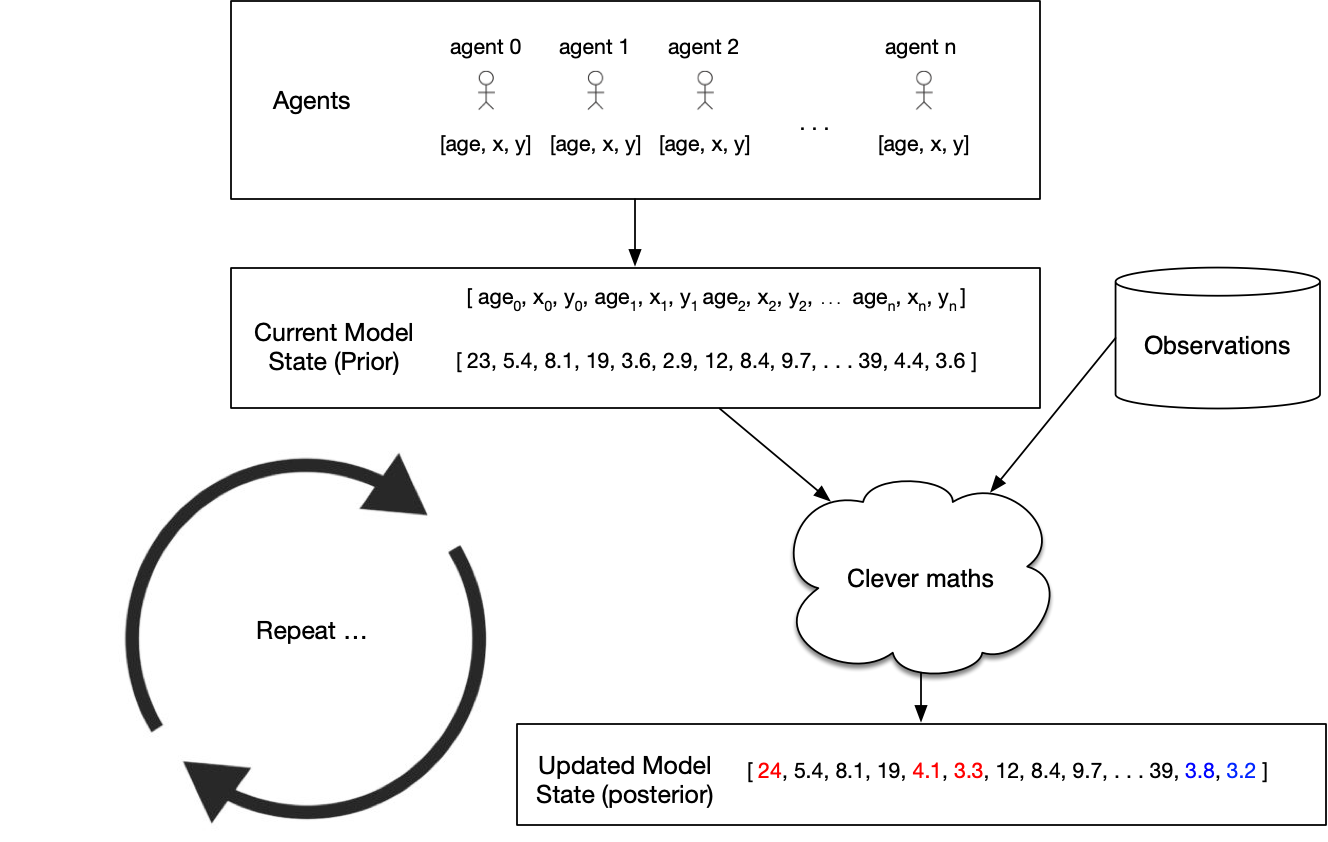

Data assimilation with a Particle Filter

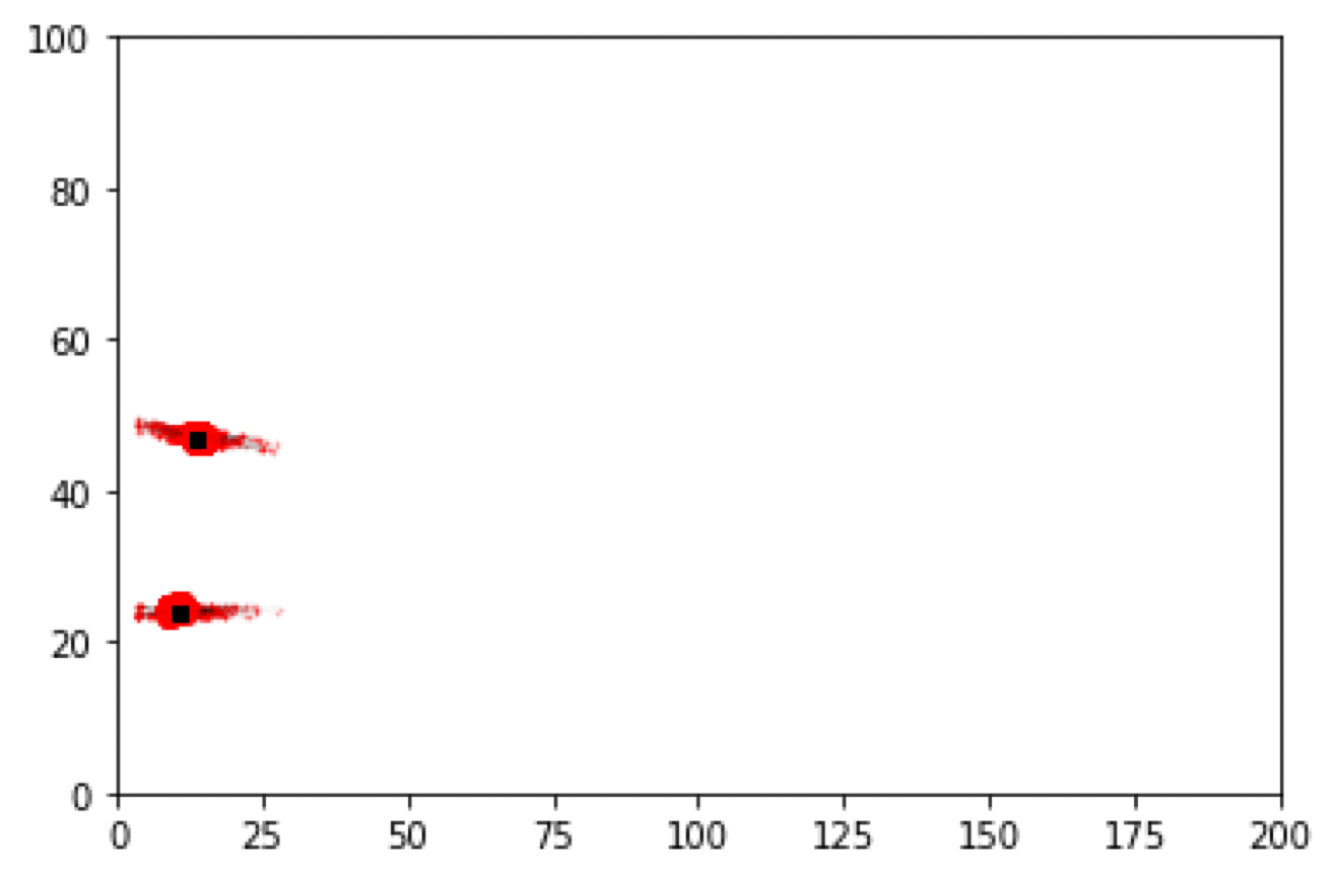

Crowd Simulation with a Particle Filter

Particle Filter Results

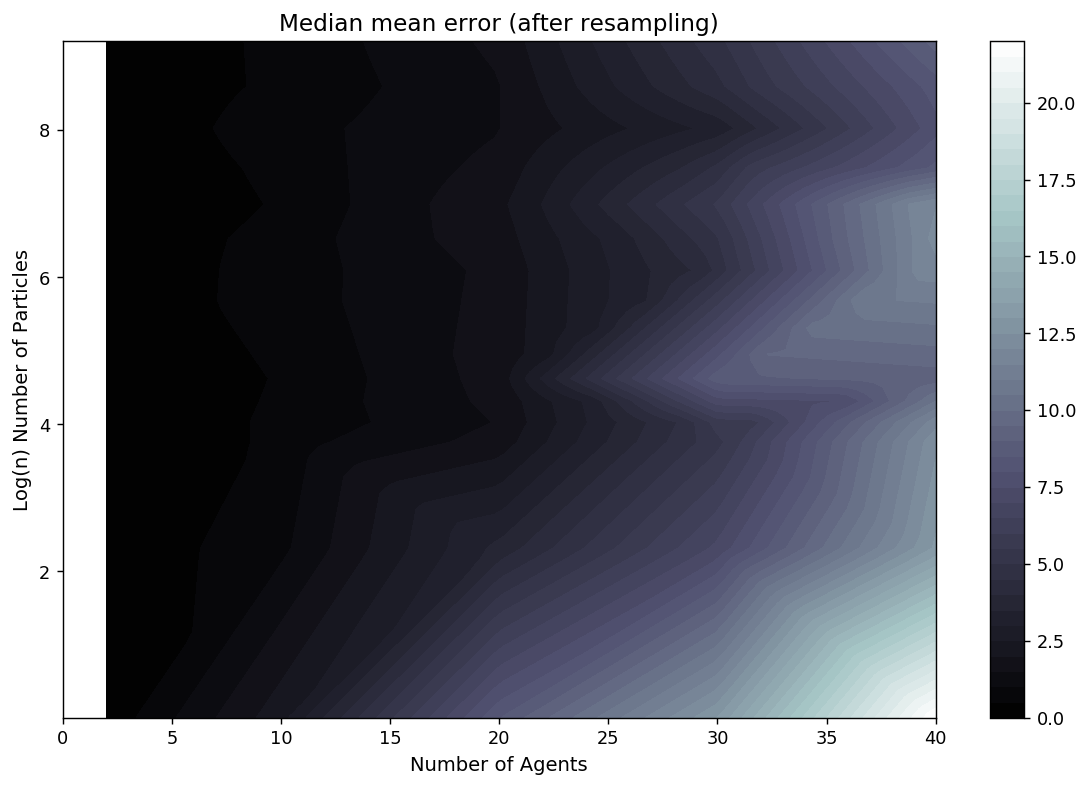

Box Environment: More particles = lower error

Exponential increase in complexity

Ensemble Kalman Filter (EnKF)

More complicated, and has stronger assuptions, but can update the model state (including categorical parameters) directly

\( \hat{X} = X + K \left( D - H X \right) \)

Current state estimate (\(X\)) updated with new information (\(\hat{X}\))

\(K\) (Kalman gain) balances importance of new data (\(D\)) v.s. current prediction.

\(H X\): prediction transformed into the same space as the observed data (e.g. arrregate observations and individual agents)

Challenges:

Designed for continuous data -- categorical parameters need converting (non trivial)

Unpredictable human behaviour

Problems with numeric scales (struggles with large and small numbers)

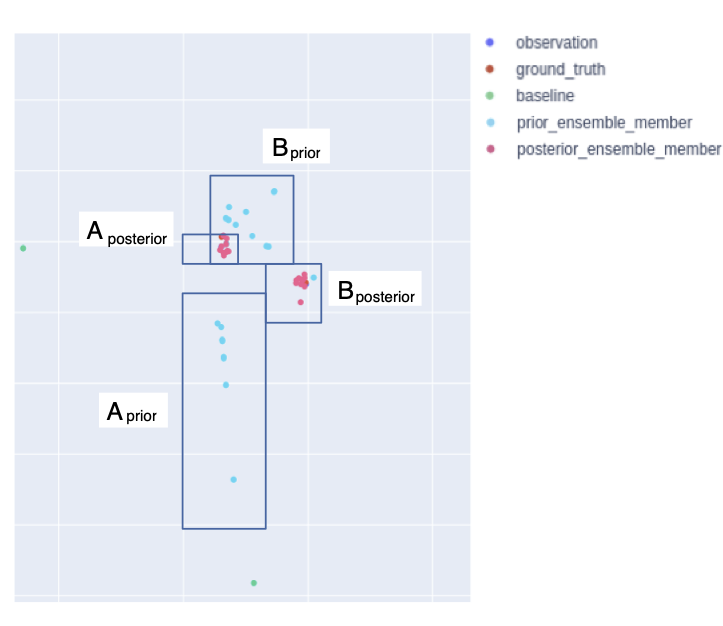

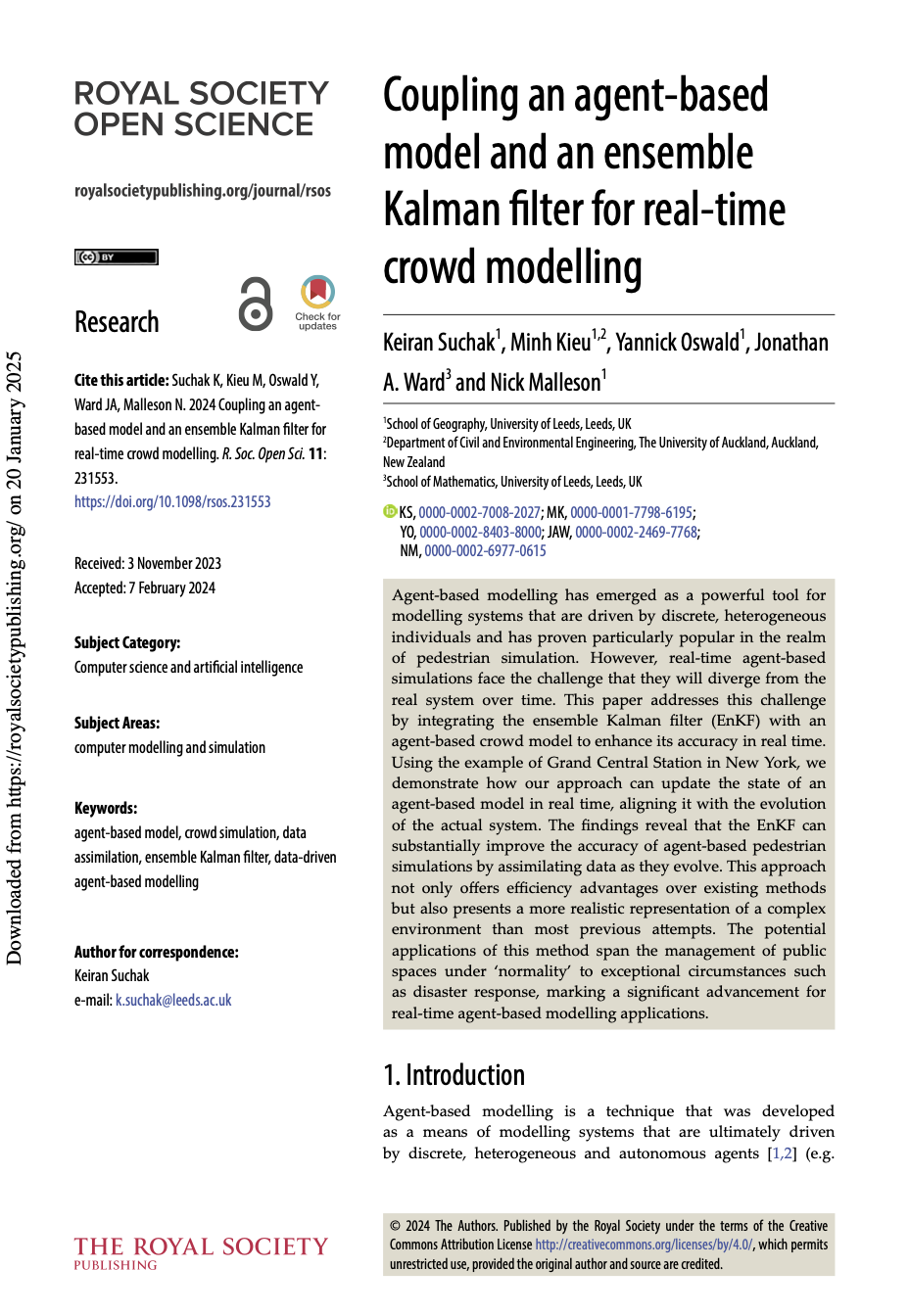

EnKF for Pedestrian Simulation

Case Study 2:

International Policy Diffusion

ABM simulates COVID-19 policy diffusion via peer mimicry

Particle filter enhances prediction accuracy with real-time data.

Frequent filtering improves results.

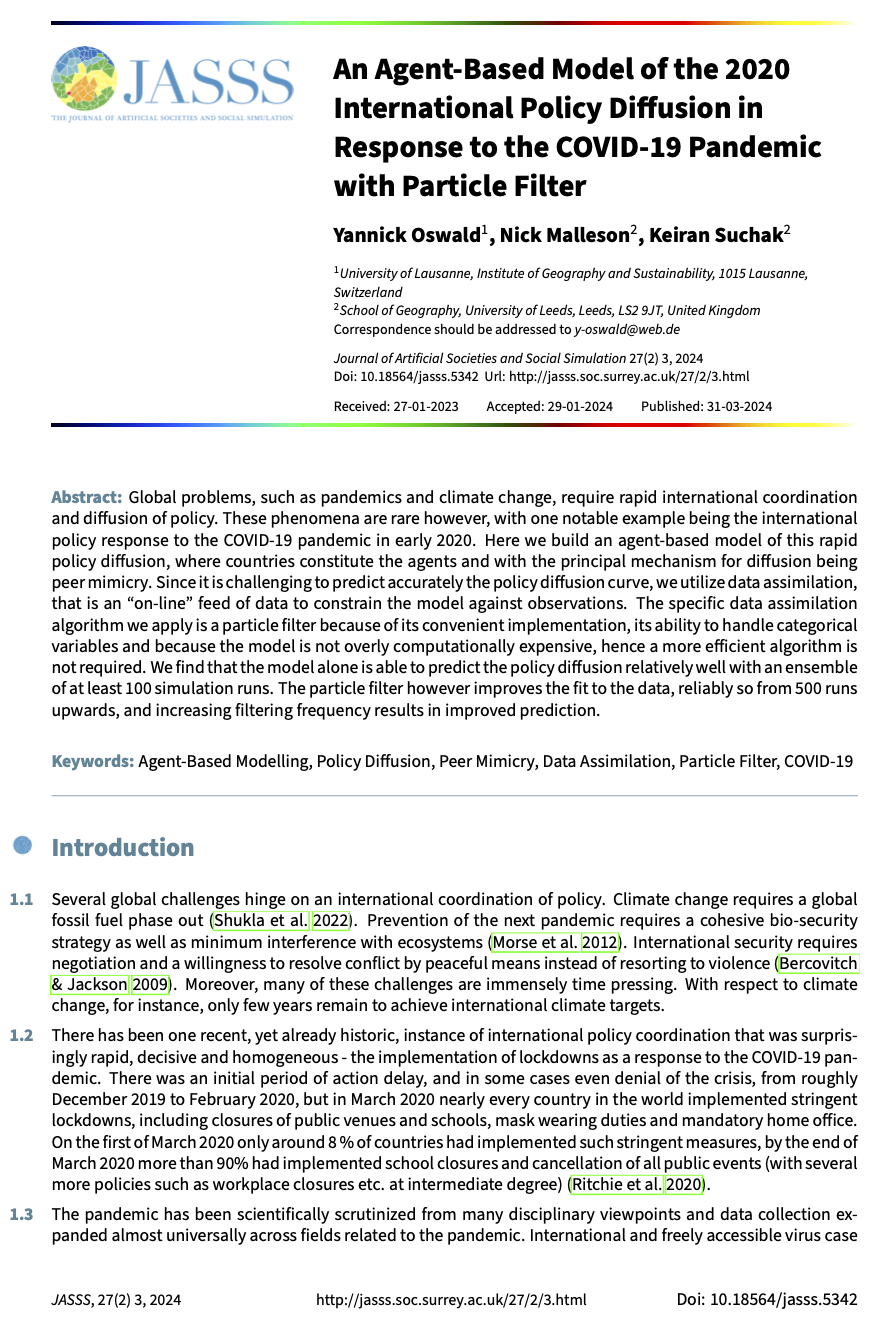

Y. Oswald, N. Malleson and K. Suchak (2024). An Agent-Based Model of the 2020 International Policy Diffusion in Response to the COVID-19 Pandemic with Particle Filter. Journal of Artificial Societies and Social Simulation 27(2) 3. DOI: 10.18564/jasss.5342

International Policy Diffusion

Global challenges hinge on international coordination of policy

COVID-19 lockdown: compelling example of almost unanimous global response

Aim: Develop a parsimonious ABM to explore mechanisms of international lockdown diffusion and improve prediction accuracy through data assimilation.

Methods

Agent-Based Model (ABM)

Agents: countries, with binary lockdown states ("lockdown" or "not in lockdown").

Behaviour: Peer mimicry based on similarity (income, democracy index, geography).

Secondary mechanism: Autonomous lockdown adoption based on internal thresholds (e.g., population density).

Calibration

Based on real-world lockdown data (March 2020) and parameters like social thresholds, peer group size, and adoption probabilities.

Data assimilation with a particle filter

Updates model predictions in real time using observed data (e.g., lockdown status of countries).

Improves model alignment with real-world dynamics by filtering poorly performing simulations.

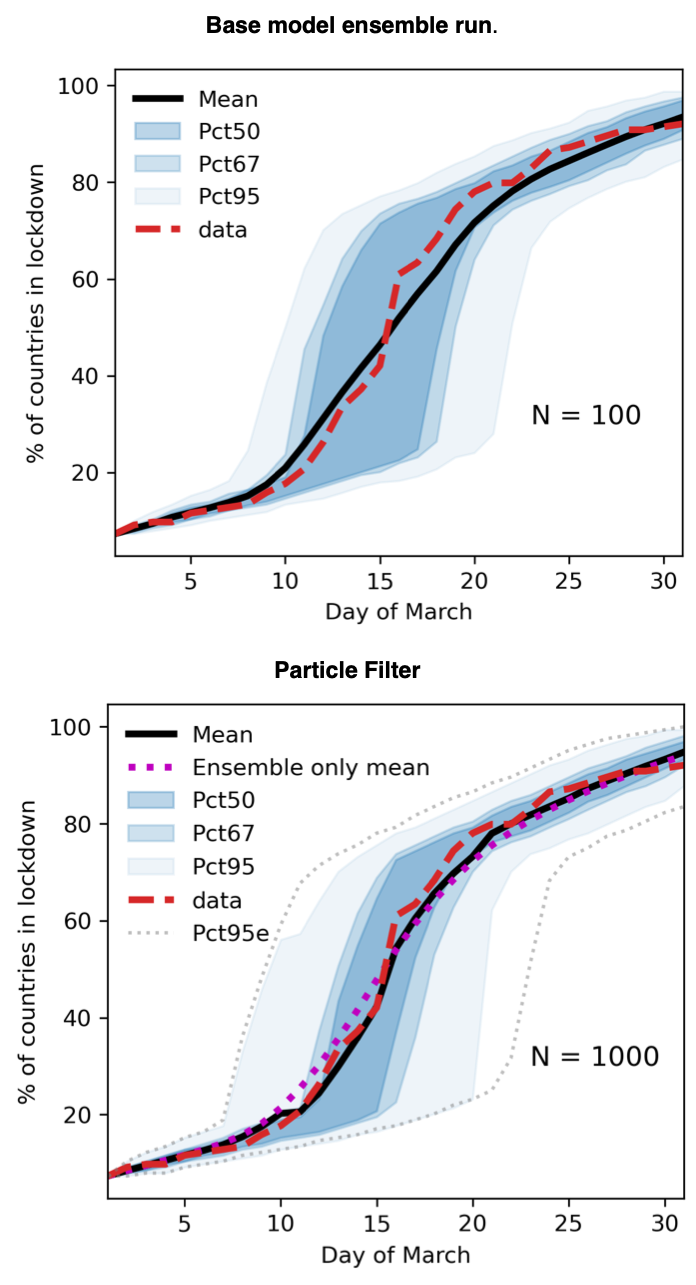

Results

After calibration, base model performance is adequate, but exhibits large variance, especially during 'critical' phase (when most countries are going in to lockdown).

Macro performance better than macro performance

An accurate lockdown percentage doesn't mean the right countries are in lockdown

Particle filter narrows confidence intervals and reduces MSE by up to 75%; up to 40% in the critical phase

Performance during the critical few days is crucial if the model is going to be useful

Conclusions

International Policy Diffusion

Proof-of-concept: social / political A-B diffusion models can be combined with data assimilation.

Particle filter improves lockdown predictions, particularly in the 'critical phase'

But the model still incorrectly predicts many countries

Undoubtedly need a more nuanced model to improve predictions further (beyond peer mimicry).

Case Study 3

Wealth Diffusion with an EnKF

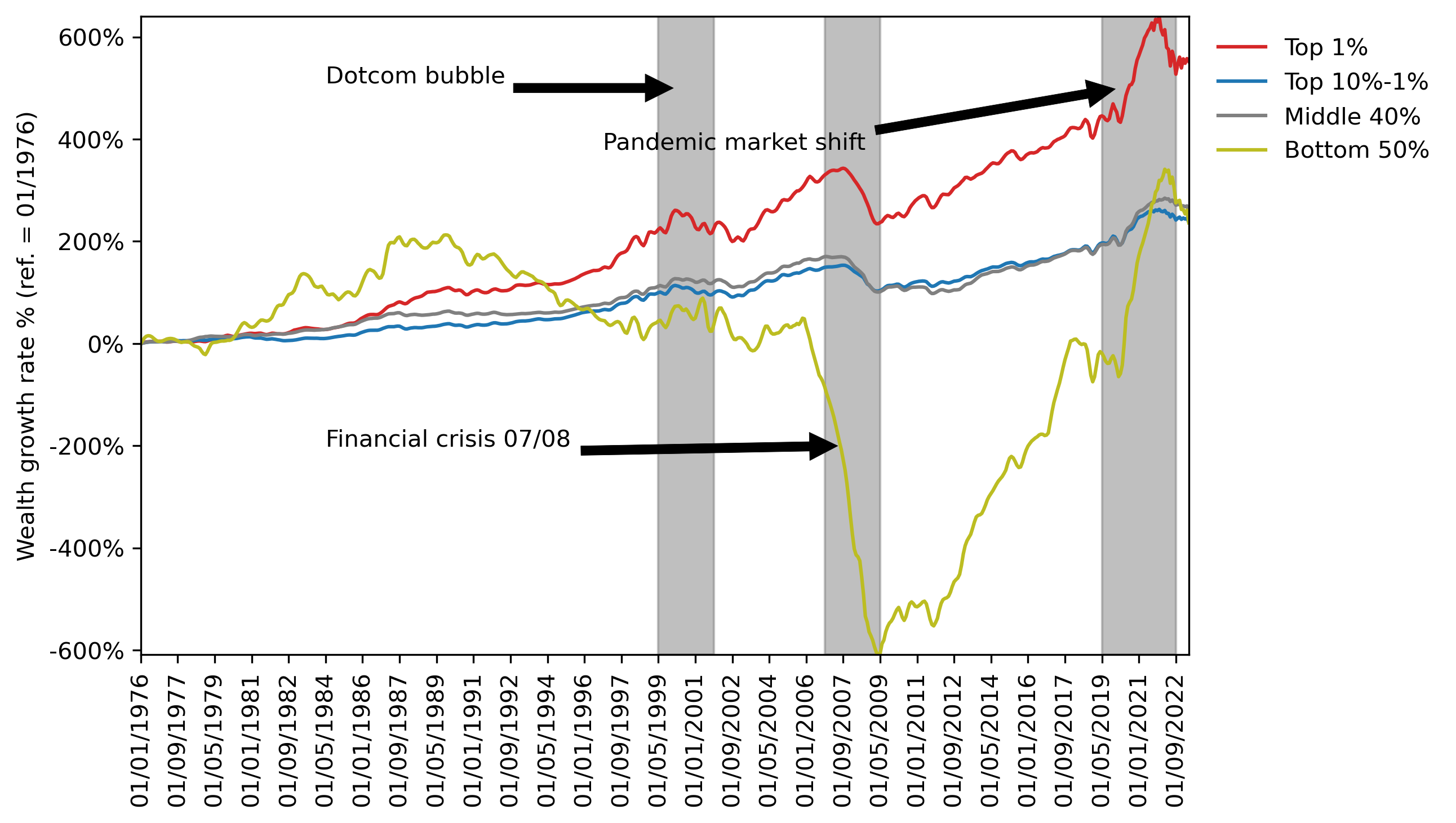

Significant wealth inequality in the U.S.

The top 1% hold ~35% of wealth, while the bottom 50% hold almost none.

(Near) real-time predictions are essential, particularly during crises

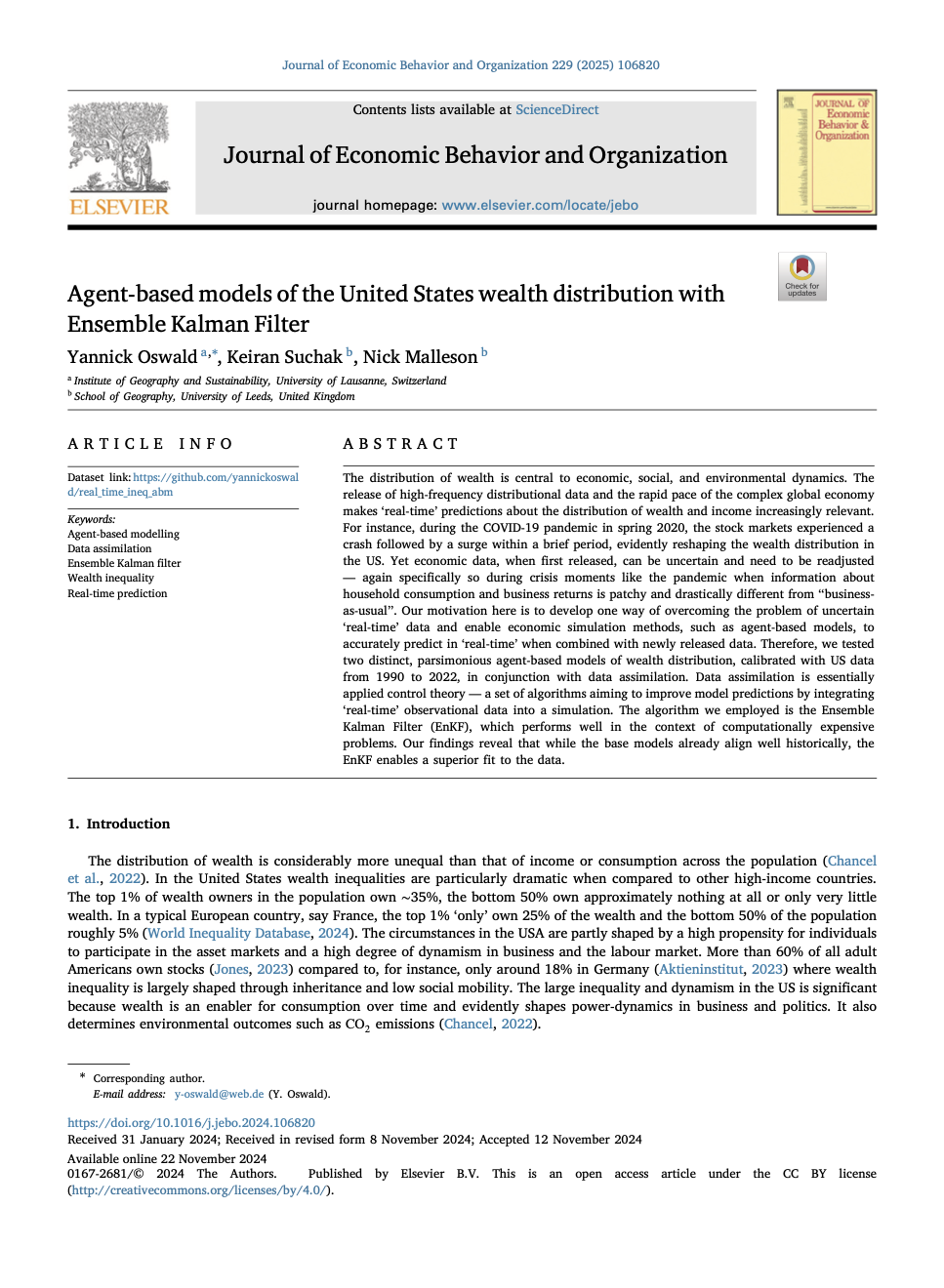

Paper explores the integration of ABMs with data assimilation to improve prediction accuracy.

Wealth Diffusion: Context

Methods (i)

Wealth Diffusion with an EnKF

Developed two agent-based models of U.S. wealth distribution:

Model 1:

Adapted from literature, focused on wealth accumulation through proportional allocation of growth.

Agents' wealth grows as a function of their initial wealth, reflecting the compounding effect of wealth.

Limited agent interaction; growth is largely independent of network effects.

Model 2:

Developed from scratch, includes network-based agent interactions and adaptive behaviours (more akin to a 'true' ABM)

Methods (ii)

Wealth Diffusion with an EnKF

Integrated the ABMs with an Ensemble Kalman Filter (EnKF):

EnKF adjusted agent-specific variables (e.g., wealth per agent) dynamically to match observed data.

Calibrated to U.S. wealth data (1990–2022) and tested them against real-time wealth estimates.

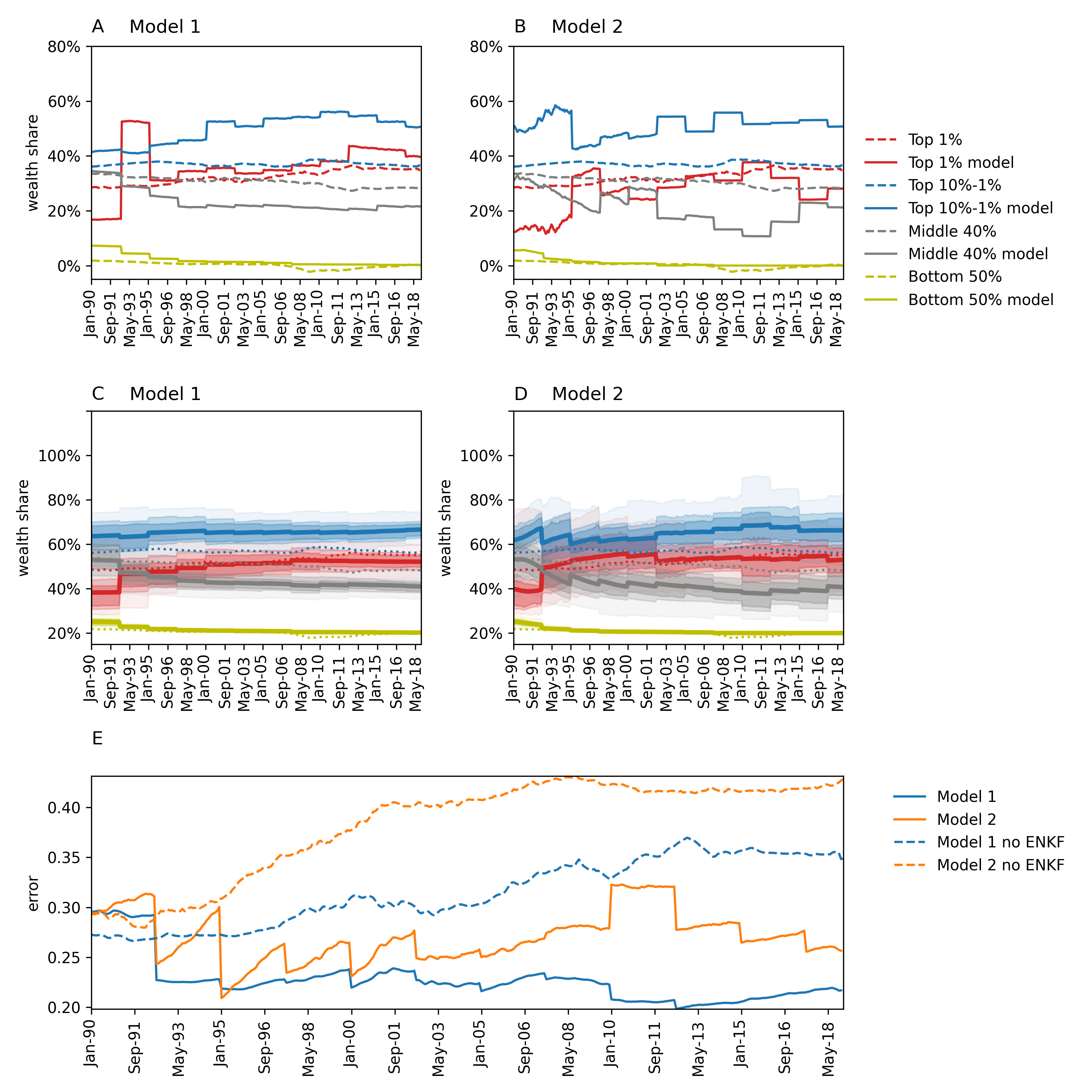

Results

EnKF improved model accuracy significantly (20–50% error reduction).

Corrected disparities in predicted wealth shares for different economic groups (observe the jagged lines).

Filter still exhibited some unexpected behaviour

Conclusions

Wealth Diffusion with an EnKF

We show that a marco-economic ABM can be optimised with an EnKF

Improved short-term predictions, especially during a crisis

Essential during crises; models cannot include everything

Additional opportunity for improved understanding

E.g. through examining evolution of the Kalman Gain matrix and contrasting the observation v.s. model weights -- which become more or less certain over time?

2 last-minute things that may be relevant:

History matching and ABC for a ABM

McCulloch, J., J. Ge, J.A. Ward, A. Heppenstall, J.G. Polhill, N. Malleson (2022) Calibrating agent-based models using uncertainty quantification methods. Journal of Artificial Societies and Social Simulation 25, 1. DOI: 10.18564/jasss.4791 (open access)

Emulating a pedestrian ABMwith a Gaussian Process Emulator

Kieu, M., H. Nguyen, J. A. Ward, and N. Malleson (2024). Towards Real-Time Predictions Using Emulators of Agent-Based Models. Journal of Simulation 18 (1): 29–46. DOI: 10.1080/17477778.2022.2080008

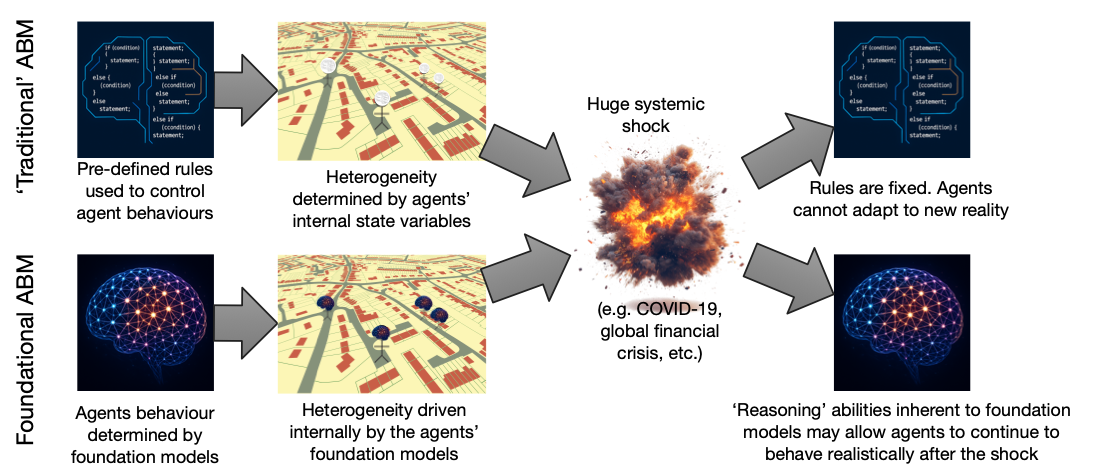

Foundation-model-backed ABMs

Modelling human behaviour in ABMs is (still!) an ongoing challenge

Behaviour typically implemented with bespoke rules, or even more advanced mathematical approaches

But still very limitted and brittle behaviour

Can new AI approaches offer a solution?

Large Language Models can respond to prompts in 'believable', 'human-like' ways

Geospatial Foundation Models capture nuanced, complex spatial associations

Multi-modal Foundation Models operate with diverse data (text, video, audio, etc.)

Large Language Models (LLMs)

Early evidence suggests that large-language models (LLMs) can be used to represent a wide range of human behaviours

Already a flurry of activity in LLM-backed ABMs

E.g. AutoGPT, BabyAGI, Generative Agents, MetaGP ... and others ...

LLMs & ABMs: Challenges

Lots of them!

Computational complexity: thousands/millions of LLMs?

Bias: LLMs very unlikely to be representative (non-English speakers, cultural bias, digital divide, etc.)

Validation: consistency (i.e. stochasticity), robustness (i.e. sensitivity to prompts), hallucinations, train/test contamination, and others

Main one for this talk: the need to interface through text

Communicating -- and maybe reasoning -- with language makes sense

But having to describe the world with text is a huge simplification / abstraction

A solution? Multi-modal and Geospatial Foundation Models

Foundation models: "a machine learning or deep learning model trained on vast datasets so that it can be applied across a wide range of use cases" (Wikipedia)

LLMs are Foundation models that work with text

Geospatial Foundation Models

FMs that work with spatial data (street view images, geotagged social media data, video, GPS trajectories, points-of-interest, etc.) to create rich, multidimensional spatial representations

Multi-modal Foundation Models

FMs that work with diverse data, e.g. text, audio, image, video, etc.

Towards Multi-Modal Foundation Models for ABMs (??)

GFMs and LLMs: a new generation of ABMs?

LLMs 'understand' human behaviour and can reason realistically

GFMs provide nuanced representation of 'space'

Summary

ABC: dynamic calibration and inferring latent parameters

Data assimilation for ABMs: Ensemble Kalman Filter worked best

LLMs and foundation models for ABMs!
