Presentation to the Government Operational Research Service

Real-time Agent-Based Modelling with Data Assimilation


Nick Malleson

University of Leeds, UK

n.s.malleson@leeds.ac.uk

dust.leeds.ac.uk


Slides available at:
www.nickmalleson.co.uk/presentations.html

Overview

Introduction to ABM

Divergence and Data Assimilation

Case Studies

Pedestrian crowding in busy public places

International policy diffusion

The dynamics of household wealth distributions

Discussion

Diagram of regression

Introduction to ABM

Aggregate v.s. Individual

'Traditional' modelling methods work at an aggregate level, from the top-down

E.g. Regression, spatial interaction modelling, location-allocation, etc.

Aggregate models work very well in some situations

Homogeneous individuals

Interactions not important

Very large systems (e.g. pressure-volume gas relationship)

Diagram of regression

Introduction to ABM

Aggregate v.s. Individual

But they miss some important things:

Low-level dynamics, i.e. “smoothing out” (Batty, 2005)

Interactions and emergence

Individual heterogeneity

Unsuitable for modelling complex systems

Diagram of the sims

Introduction to ABM

Systems are driven by individuals

Bottom-up modelling

An alternative approach to modelling

Rather than controlling from the top, try to represent the individuals

Account for system behaviour directly

Autonomous, interacting agents

Represent individuals or groups

Situated in a virtual environment

A termite mound.
Attribution: JBrew (CC BY-SA 2.0).

Why ABM?

Emergence

"The whole is greater than the sum of its parts." (Aristotle?)

Simple rules → complex outcomes

E.g. who plans the air-conditioning in termite mounds?

Hard to anticipate, and cannot be deduced from analysis of an individual

ABM uses simulation to (try to) understand how macro-level patterns emerge from micro-level behaviours

Why ABM?

Better Representations of Theory

Example: Crime theories emphasise importance of ...

Individual behaviour (offenders, victims, guardians)

Individual geographical awareness

Environmental backcloth

Why ABM?

Better Representations of Space

Example of GIS data

Micro-level environment is very important

Can richly define the space that agents inhabit

More Natural Description of a System

Describe the entities directly, rather than using aggregate equations

Why ABM?

History of the Model Evolution

Rather than returning a single result, the model evolves

The evolution itself can be interesting

Analyse why certain events occurred

Modelling agent behaviours

Many behaviours are hard / impossible to model

Choose those that are the most important. Cannot include everything!

Some can be very simple - e.g. threshold-based rules (Kennedy, 2012)

IF hunger IS ABOVE hunger_threshold THEN search_for_food
OTHERWISE do_something_else

These are the most common (Birks et al. 2012, 2013; Dray et al. 2008; Groff 2007a,b; Hayslett-McCall, 2008)

More advanced cognitive frameworks exist

Beliefs, Desires, Intentions (Bratman et al., 1988)

PECS (Schmidt, 2000).

ABM Example

Individual awareness spaces

Agent-Based Modelling - Difficulties

Will I play with the truck, or the duck?

(actually he played with his trains...)

Tendency towards minimal behavioural complexity

Stochasticity

Computationally expensive (not amenable to optimisation)

Complicated agent decisions, lots of decisions, multiple model runs

Modelling "soft" human factors

Need detailed, high-resolution, individual-level data

Individual-level data

Data Assimilation for Agent-Based Modelling

dust.leeds.ac.uk/

Thanks

Josie McCulloch, Alison Heppenstall, Keiran Suchak, Minh Kieu, Molly Asher, Kevin Minors, Andrew West, Dan Tang, Yannick Oswald, Robert Clay, Annabel Whipp, Jon Ward, Thomas Crols

Why we need Data Assimilation

Complex models will always diverge

(due to inherent uncertainties in inputs, parameter values, model structure, etc.)

Possible Solution: Data Assimilation

Used in meteorology and hydrology to bring models closer to reality. Combines:

Noisy, real-world observations

Model estimates of the system state

Data assimilation v.s. calibration

Example of optimising the model state using observations and data assimilation
Diagram of data assimilation and an ABM

Challenges for using DA with ABMs

Model size

10,000 agents * 5 variables = 50,000 distinct parameters

Agent behaviour

Agent's have goals, needs, etc., so can't be arbitrarily adjusted

Assumptions and parameter types

Maths typically developed for continuous parameters and assume normal distributions

Categorical parameters can be a big problem

... but, at least, some of these problems are shared by climate models

Some DA Methods

Basic idea: estimate the posterior model state

Particle Filter

Create loads of individual model 'particles' run them simultaneously.

Remove those that don't represent the observations well; duplicate those that do

Advantage: very few assumptions (Gaussian distributions etc.)

Kalman Filter

Many flavours: Ensemble, Unscented, ...

Maintain a smaller ensemble and update the particles more intelligently

Efficient but has stronger assumptions (although they might work OK anyway...)

4DVar

This is popular in meteorology but I don't know anything about it...

Image of escalators in a train station

Case study 1:

Real Time Crowd Modelling

We can track individuals (anonymously?) as they move through busy public spaces

We can simulate crowds quite well, but our simulated crowd will inevitably diverge from the real one

Scenario: can we use data assimmilathion to update our crowd model in response to real-time data?

Lots of potential applications for crowd management etc.

Grand Central Terminal (New York)

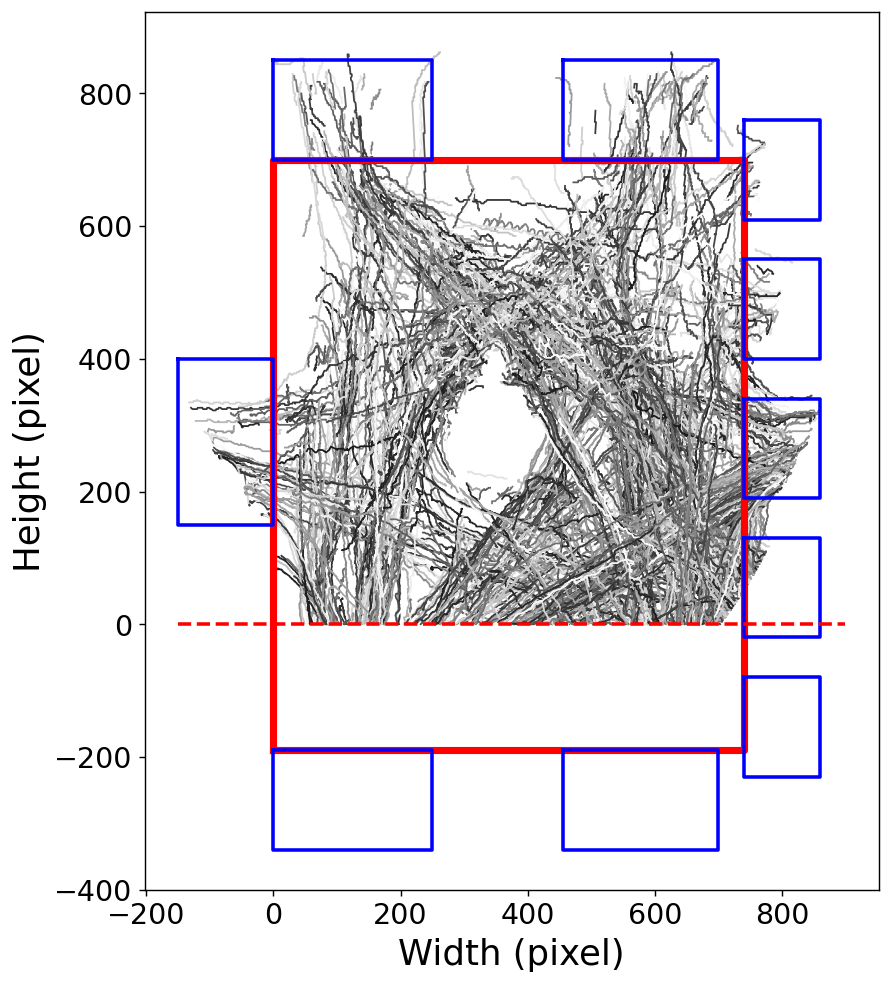

Pedestrian traces

B. Zhou, X. Wang and X. Tang. (2012) Understanding Collective Crowd Behaviors: Learning a Mixture Model of Dynamic Pedestrian-Agents. In Proceedings of IEEE Conference on Computer Vision and Pattern Recognition (CVPR) 2012

http://www.ee.cuhk.edu.hk/~xgwang/grandcentral.html

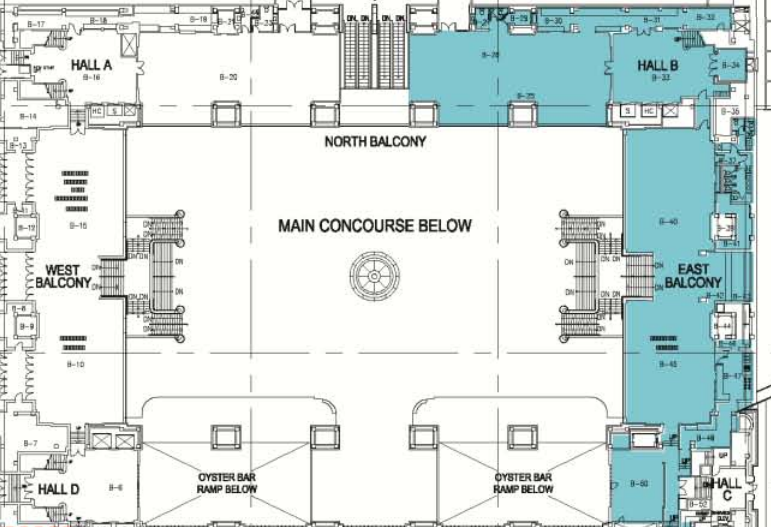

Grand Central Terminal floor plan with entrances around the sides and an obstruction in the centre. Pedestrian trajectories estimated from the video

Attempt 1: Particle Filter

Particle Filter & Categorical Parameters

Filtering makes it worse!

(video)

Solution 1

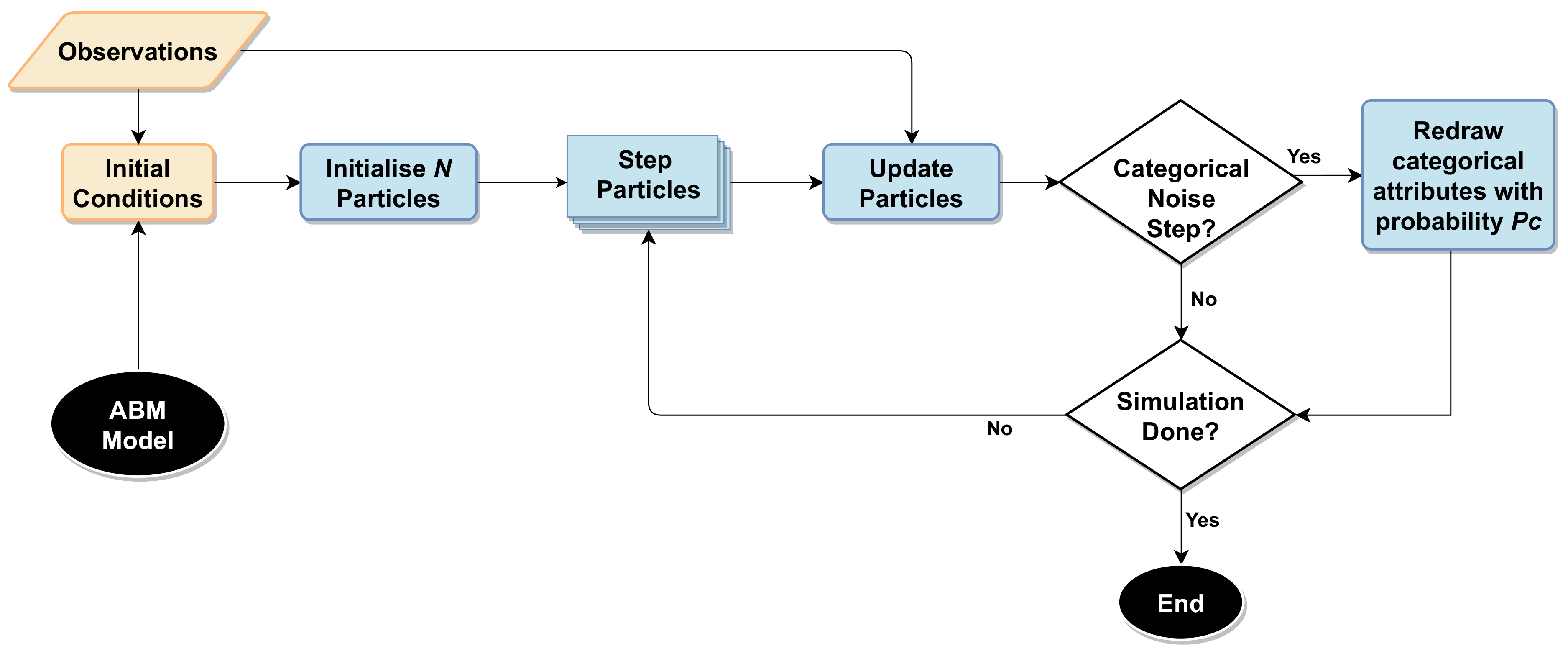

Categorical-Noise PF Step

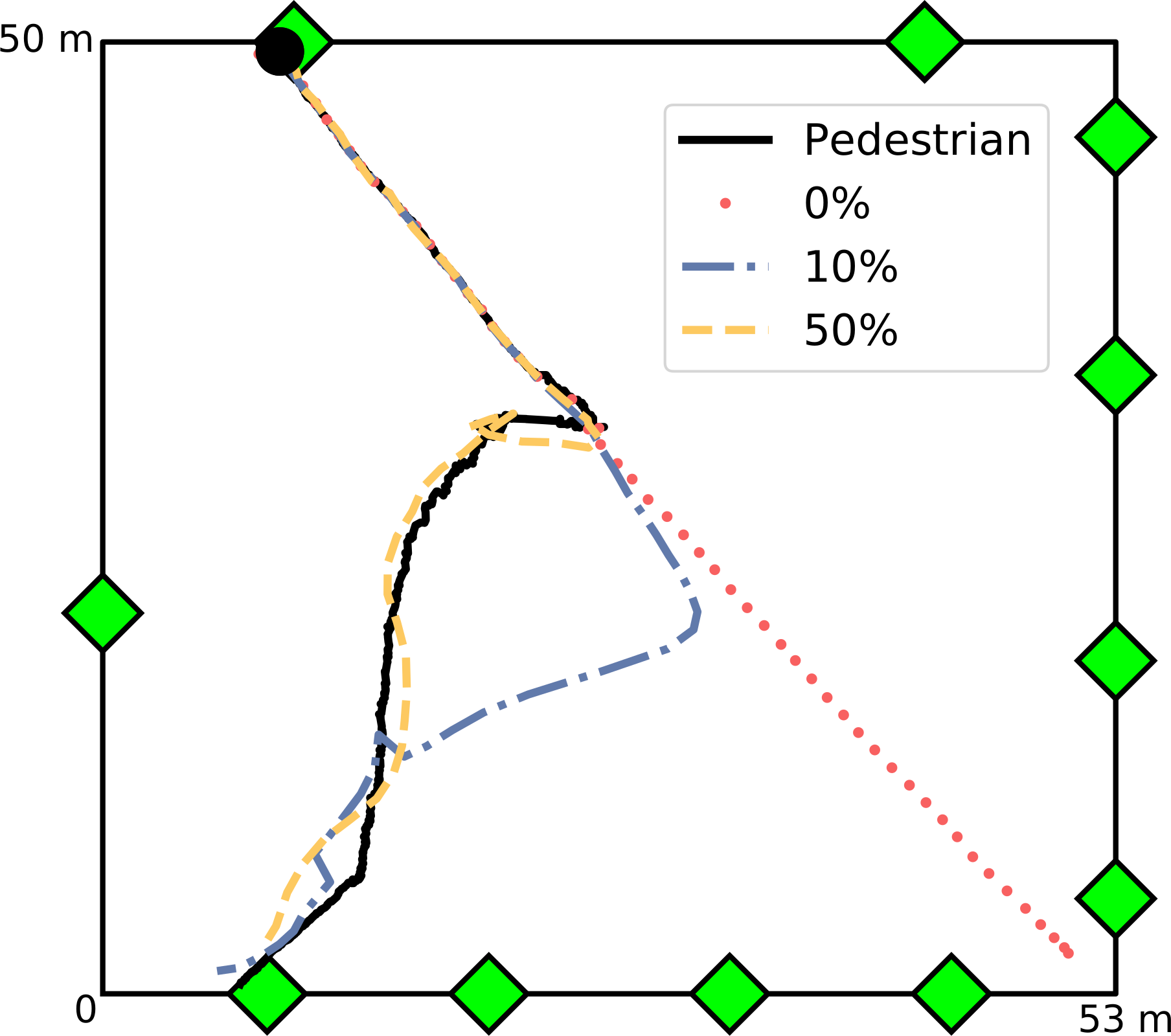

Shows that some pedestrian trajectories are linear, others very curved
Ternes, P., R. Clay, A. Heppenstall, N. Malleson. Assimilating realistic data into agent-based models in real-time with a categorical-noise particle filter step. Under Production.

Solution 1

Categorical-Noise PF Step

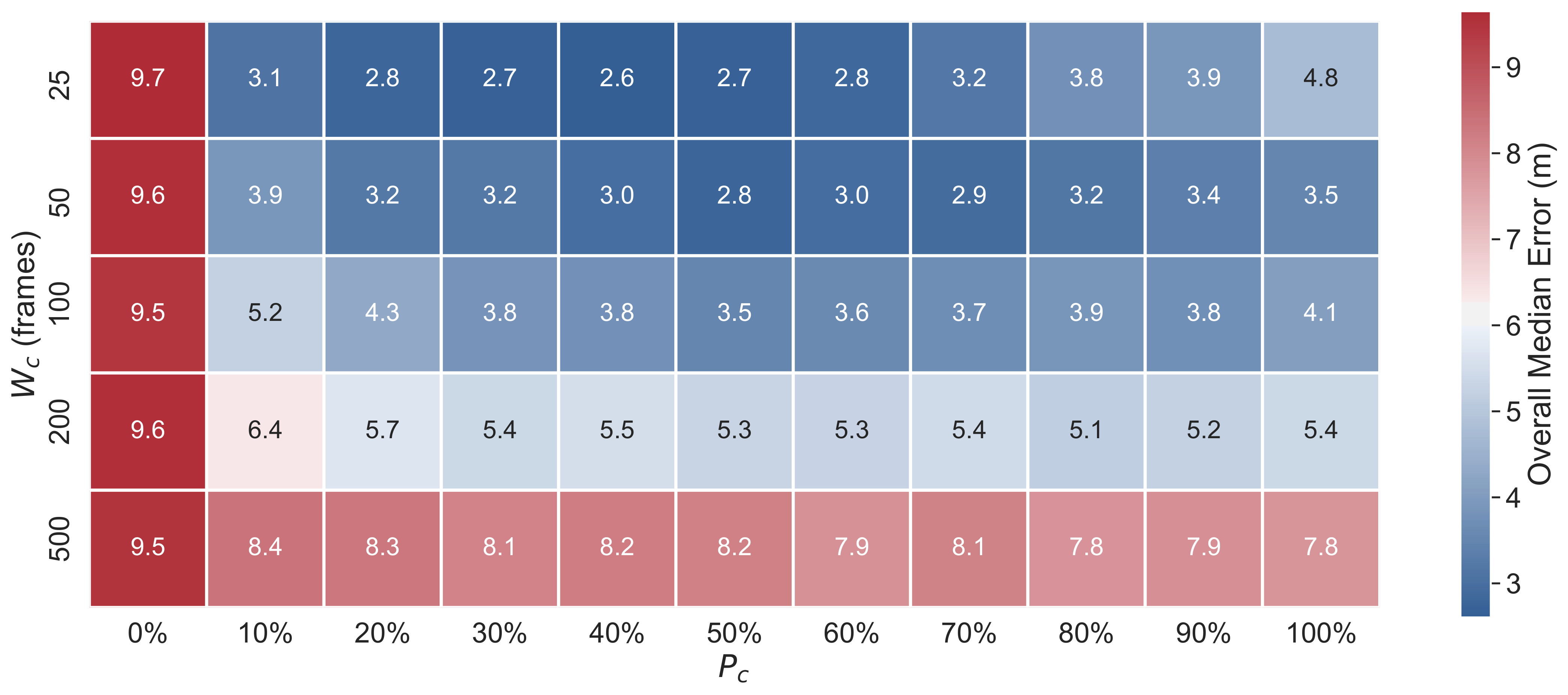

Shows that some pedestrian trajectories are linear, others very curved Shows that some pedestrian trajectories are linear, others very curved
Ternes, P., R. Clay, A. Heppenstall, N. Malleson. Assimilating realistic data into agent-based models in real-time with a categorical-noise particle filter step. Under Production.

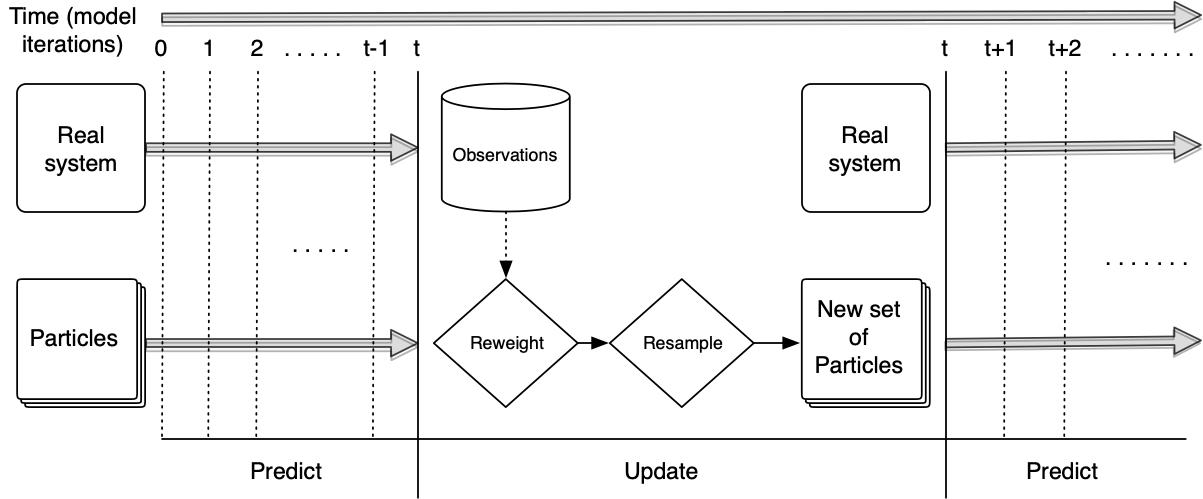

Flowchart illustrating the particle filter process. It begins with generating an ensemble of models, followed by predictions. At each time step, the algorithm checks if filtering is required (t = k). If yes, the predictions are compared to observations, optimal synthesis is computed, and ensemble members are updated. The process repeats for subsequent time steps.

Solution 2: Use an EnKF

More complicated, and has stronger assuptions, but can update the model state (including categorical parameters) directly

\( \hat{X} = X + K \left( D - H X \right) \)

Current state estimate (\(X\)) updated with new information (\(\hat{X}\))

\(K\) (Kalman gain) balances importance of new data (\(D\)) v.s. current prediction.

\(H X\): prediction transformed into the same space as the observed data (e.g. arrregate observations and individual agents)

Pedestrian simulation: EnKF Results

Figure illustrates that, after DA, the posterior estimates of two agents' locations are much closer to their corresponding positions in the data (observation)
Figure 9: Comparison of prior and posterior positions of two agents (‘A’ and ‘B’) in all ensemble member models. After DA the positional estimates of the agents' locations are much more accurate and have lower variability.
Front page of the published paper
Suchak, K., M. Kieu, Y. Oswald, J. A. Ward, and N. Malleson (2024), Coupling an Agent-Based Model and an Ensemble Kalman Filter for Real-Time Crowd Modelling. Royal Society Open Science 11 (4): 231553. DOI: 10.1098/rsos.231553.

Conclusions

Real Time Crowd Modelling

Particle filter struggled (so many agents with so many destination choices)

But there is an opportunity to develop more neuanced filters

EnKF performed very well

Next steps: scale up to larger/more complicated crowds and use a more advanced crowd model.

Cover image of the paper

Case Study 2:

International Policy Diffusion

ABM simulates COVID-19 policy diffusion via peer mimicry

Particle filter enhances prediction accuracy with real-time data.

Frequent filtering improves results.



Y. Oswald, N. Malleson and K. Suchak (2024). An Agent-Based Model of the 2020 International Policy Diffusion in Response to the COVID-19 Pandemic with Particle Filter. Journal of Artificial Societies and Social Simulation 27(2) 3. DOI: 10.18564/jasss.5342

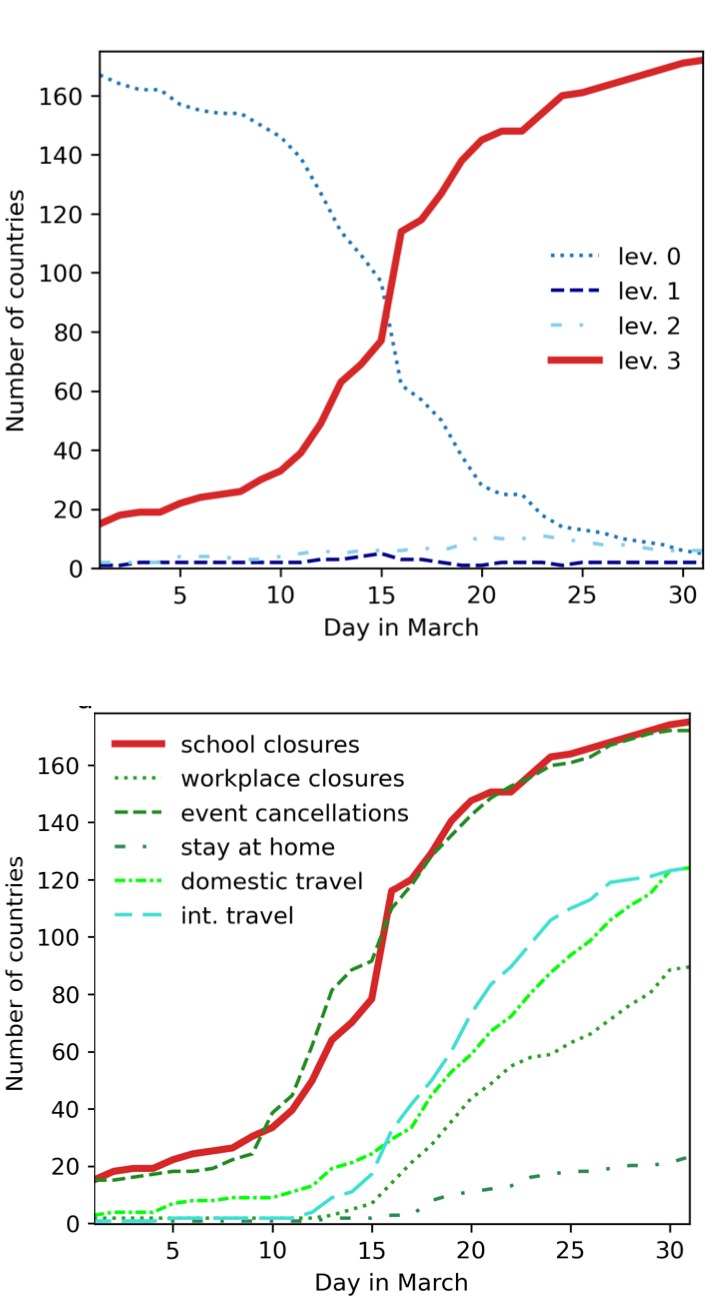

Two subplots showing the progression of COVID-19 policy adoption across countries in March 2020. Panel (a) depicts the number of countries implementing school closures at four levels of stringency (level 0 to level 3) over time, with a rapid transition to level 3 (complete school closures) around mid-March. Panel (b) compares the adoption of various policies, including school closures, workplace closures, event cancellations, stay-at-home orders, domestic travel restrictions, and international travel restrictions, all measured by the number of countries. School closures exhibit the fastest and most widespread adoption, closely followed by event cancellations, with other policies showing slower adoption.
Adoption of school closure policies by governments worldwide. Data source: Our World In Data.

International Policy Diffusion

Global challenges hinge on international coordination of policy

COVID-19 lockdown: compelling example of almost unanimous global response

Aim: Develop a parsimonious ABM to explore mechanisms of international lockdown diffusion and improve prediction accuracy through data assimilation.

Methods

Agent-Based Model (ABM)

Agents: countries, with binary lockdown states ("lockdown" or "not in lockdown").

Behaviour: Peer mimicry based on similarity (income, democracy index, geography).

Secondary mechanism: Autonomous lockdown adoption based on internal thresholds (e.g., population density).

Calibration

Based on real-world lockdown data (March 2020) and parameters like social thresholds, peer group size, and adoption probabilities.

Data assimilation with a particle filter

Updates model predictions in real time using observed data (e.g., lockdown status of countries).

Improves model alignment with real-world dynamics by filtering poorly performing simulations.

“Two panels comparing the percentage of countries in lockdown predicted by the base model and particle filter. Top panel: Base model ensemble run with 100 simulations, showing the mean prediction (black line) closely following observed data (red dashed line) with wide confidence intervals. Bottom panel: Particle filter with 1000 particles, showing improved alignment with observed data and narrower confidence intervals compared to the base model.

Results

After calibration, base model performance is adequate, but exhibits large variance, especially during 'critical' phase (when most countries are going in to lockdown).

Macro performance better than macro performance

An accurate lockdown percentage doesn't mean the right countries are in lockdown

Particle filter narrows confidence intervals and reduces MSE by up to 75%; up to 40% in the critical phase

Performance during the critical few days is crucial if the model is going to be useful

Conclusions

International Policy Diffusion

Proof-of-concept: social / political A-B diffusion models can be combined with data assimilation.

Particle filter improves lockdown predictions, particularly in the 'critical phase'

But the model still incorrectly predicts many countries

Undoubtedly need a more nuanced model to improve predictions further (beyond peer mimicry).

Cover image of the paper
Oswald, Y., K. Suchak, and N Malleson (2025). Agent-Based Models of the United States Wealth Distribution with Ensemble Kalman Filter. Journal of Economic Behavior & Organization 229:106820. DOI: 10.1016/j.jebo.2024.106820

Case Study 3

Wealth Diffusion with an EnKF

Significant wealth inequality in the U.S.

The top 1% hold ~35% of wealth, while the bottom 50% hold almost none.

(Near) real-time predictions are essential, particularly during crises

Paper explores the integration of ABMs with data assimilation to improve prediction accuracy.

Wealth Diffusion: Context

Wealth distribution among different wealth groups in the U.S. The 50% poorest people lost significant wealth during the 2008 financial crisis. The data are from https://realtimeinequality.org/ with details in Blanchet et al. (2022).
Wealth distribution in the U.S. D from realtimeinequality.org with details in Blanchet et al. (2022).

Methods (i)

Wealth Diffusion with an EnKF

Developed two agent-based models of U.S. wealth distribution:

Model 1:

Adapted from literature, focused on wealth accumulation through proportional allocation of growth.

Agents' wealth grows as a function of their initial wealth, reflecting the compounding effect of wealth.

Limited agent interaction; growth is largely independent of network effects.

Model 2:

Developed from scratch, includes network-based agent interactions and adaptive behaviours (more akin to a 'true' ABM)

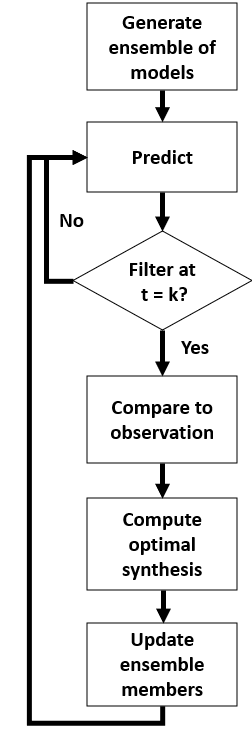

Flowchart illustrating the particle filter process. It begins with generating an ensemble of models, followed by predictions. At each time step, the algorithm checks if filtering is required (t = k). If yes, the predictions are compared to observations, optimal synthesis is computed, and ensemble members are updated. The process repeats for subsequent time steps.

Methods (ii)

Wealth Diffusion with an EnKF

Integrated the ABMs with an Ensemble Kalman Filter (EnKF):

EnKF adjusted agent-specific variables (e.g., wealth per agent) dynamically to match observed data.

Calibrated to U.S. wealth data (1990–2022) and tested them against real-time wealth estimates.

Results of Experiment 1 Part A: illustrating the error of models 1 and 2 under Ensemble Kalman Filter (EnKF) optimisation with 100 ensemble members compared to the real data. The filter is applied every 20 time steps (months). Panels (A–D) depict the wealth share of the different economic groups (top 1%, top 10%–1%, middle 40%, bottom 50%) over time. Panels (A) and (B) present the archetypal behaviour of a single model run, illustrating how the EnKF influences the model behaviour. Panels (C) and (D) show the mean EnKF prediction and uncertainty across all ensemble members. Panel (E) depicts the Mean Absolute Error (MAE) from Eq. (7) of the two models, with and without the EnKF. It is clear that

Results

EnKF improved model accuracy significantly (20–50% error reduction).

Corrected disparities in predicted wealth shares for different economic groups (observe the jagged lines).

Filter still exhibited some unexpected behaviour

Image to liven up slide showing abstract people and a network

Conclusions

Wealth Diffusion with an EnKF

We show that a marco-economic ABM can be optimised with an EnKF

Improved short-term predictions, especially during a crisis

Essential during crises; models cannot include everything

Additional opportunity for improved understanding

E.g. through examining evolution of the Kalman Gain matrix and contrasting the observation v.s. model weights -- which become more or less certain over time?

Summary and Challenges

This talk has outlined some of the opportunities offered by DA for improving empirical ABMs

Case studies: crowding; international policy response; wealth dynamics

Computational complexity

Examples here use models that are parsimonious. Will it be possible with more complex models, e.g. those use to to build city digital twins??

Methodological

Non-trivial to adapt meteorological methods, e.g. handling categorical parameters

Data

Availability of high-quality, high-resolution data

Privacy & ethical issues

Opportunities

We know that some model uncertainty will always be present, DA helps to reduce these

Transformative potential of "live" (Swarup and Mortveit, 2020) simulations

Combine up-to-date, diverse datasets and create accurate predictions using "all the available information" (Talagrand, 1991)

Using the update step to estimate latent variables -- the filter helps the model to 'learn' its internal dynamics from data

Transferring information from data rich areas to data poor ones

Presentation to the Government Operational Research Service

Real-time Agent-Based Modelling with Data Assimilation


Nick Malleson

University of Leeds, UK

n.s.malleson@leeds.ac.uk

dust.leeds.ac.uk


Slides available at:
www.nickmalleson.co.uk/presentations.html
